- Shorter lines
- Satisfied customers
- Reduce labor costs
- Better use of human resources

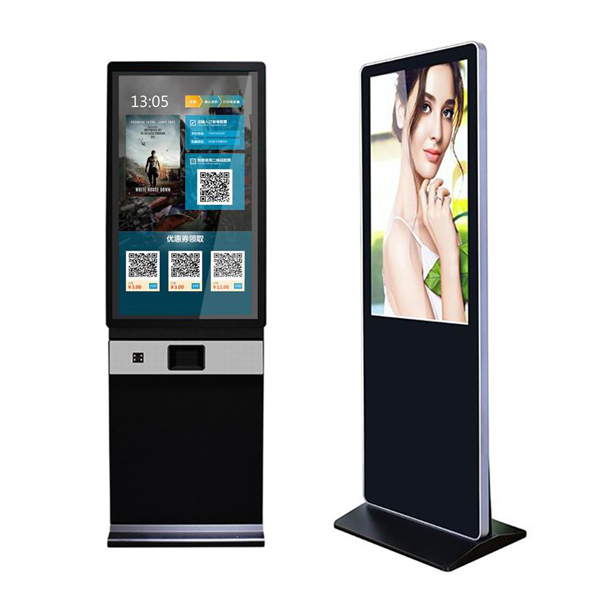

43inch Self-service ticketing kiosk
100 in stock
Description
| MODEL | 430V-02A | |||
| General specification | Motherboard | Android ZC-328 (PC is optional) | RAM | 2G (default) highest4G |
| Storage memory | EMMC 8G(default)/16/32G/64G(Optional) | Operating system | Android 6.0 (Android 7.1, Windows optional) | |
| Network support | 3G.Ethernet、Stand byWiFi/Bluetooth4.0s Wireless peripheral extension | |||
| Panel specification | Screen specification | 43 inch A+ Original Panel | Screen type | a-si TFT-LCD module |
| Backlight type | WLED | Display size | 941.184(width)x529.416(high) mm | |
| Resolution | 1920*1080 | Contrast | 1000:1 | |
| Perspective | 89/89/89/89 (Typ.)(CR2lO) | brightness | 450cd/mz | |
| Contact method | 10point Infrared touch | Operating Voltage | DC12v | |
| Operating temperature | 0°C ~ 40°C 20% ~ 80% RH | Storage temperature | -40°C~ 60°C 10% – 95% RH | |
| Interface Type | HDMI LVDS | |||
| Motherboard specs | Processor | RK3288Strongest quad core1.8GHz Cortex-A17 Quad core GPU Mail-T764 | ||
| Decoding resolution | Highest support 3840*2160 | USB2.0 | 2*USB HOST、4*USB socket | |
| Video playback | stand byAVI (H.264、DIVX. DIVX、XVID) , rm, rmvb, MKV (H.264、DIVX、DIVX、XVID) , WMV, MOV, MP4 (.H.264、MPEG、 DIVX、XVID) , DAT (VCDformat) , VOB (DVDformat) , PMRMPEG, .MPG, FLV (H.263, H.264) , ASF , TS, TP, 3GP, MPGWait30Species formatthe above | |||
| Image Format | Stand byJPG、BMP、PNG、GlFWaitBrowse and support various image formats for rotation/slideshow, up to maximum support lb 4096*4096 Resolution | |||
| The printer | Printing method | Thermal printing | Resolution | 576 dpi (8 dots/mm) |
| Paper width | 80 (mm) | Print width | 72 (mm) | |
| Communication
Interface |
USB | Printing speed | 150 (mm/s) max | |
| Detection function | Temperature detection and paper end sensor | Operating Voltage | 24V DC | |
| Operating temperature | -10°C~ + 50°C/10% RH ~ 80% RH | Cutter life | 100Million times | |
| TPH life | 50km | |||
| Scanning | Operating Voltage | 5v DC | Operating temperature | -20°C To 60°C |
| Maximum power consumption | 1.75W | Reading mode | 752*480 CMOS | |
| Support code system (QR code) | 1D SUPPORT: standard 2of 5V code 11、codabar、Plessey、code39(standard 39 & full ASCII code 39)v code93、code128、 UPCA、UPCE、EAN13、EAN8. ISBN. ISSN. ITF-6.ITF-14.1nterleared 2of5.Industrial 2of5.standard 2of5.matrix 2of5.GSI databar.MSI-plessey2D SUPPORT: pdf417, data matrix ,qr code . | |||
| Reading accuracy | 10mil | Interface | RS232AJSB | |
| light source | White light LED | Scanning angle | D: 85° H:63.7° V:70° | |
| Ambient light | 0-100000 LUX | Result feedback | Buzzer | |
| Environmental parameters | Working environment | Indoor | Operating temperature | 0°C-40°C |
| Working humidity | 10%-90%No condensation | Storage temperature | -20°C – 50°C | |
| Storage humidity | 10%-90%No condensation | key | 2 (Put/door) | |
| Certificate | 1 (PCS) | Warranty Card | 1 (PCS) | |
| Electrical specs | Input voltage | Rated voltage 90 (V/ac) -264 (V/ac) 50/60 (Hz) | Maximum power consumption | §40 (W) |
| Characteristics | Exterior | Black spray | Housing material | Sheet metal front shell + galvanized mounting plate + sheet metal back shell |
| Dimensions | 500*608.5*1858mm | Package dimensions | 1980*700*530 (mm) | |
| Type of packaging | Carton | Total Weight | Gross weight: 188.24 (KG) | |
